3 Room Electrical House wiring

This diagram shows 3-room electrical house wiring. Nowadays we are very advance in our house wiring. If you want to make safe and good wiring in your house, your will need to plan and make diagrams with a good technician. In this diagram, we try to show you how to make a good concept of 3 rooms house wiring easily.

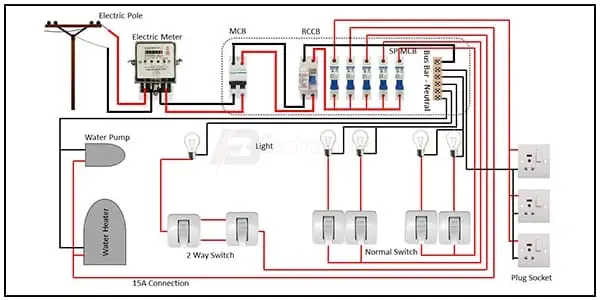

Diagram for 3 Room Electrical House wiring

Fig 1: 3 Room Electrical House wiring

Components Need for this Project:

You can get the components from any of the sites below:

Single Phase Energy Meter [See Buy Click Amazon]
Fan Regulator [See Buy Click Amazon]
DP MCB [See Buy Click Amazon]
SP MCB [See Buy Click Amazon]
2-Way Switch [See Buy Click Amazon]
3-Pin Sockets [See Buy Click Amazon]
Fan [See Buy Click Amazon]
Light [See Buy Click Amazon]

*Please note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!

Components used to make the 3 Room Electrical House wiring:

01. Single Phase Energy Meter

Fig 2: Single Phase Energy Meter

The measuring device with the help of which the electric power or energy of a circuit is measured is called Energy Meter (Energy Meter). Also called a watt-hour or kilowatt-hour meter. For home appliances, we used a single-phase energy meter. The single-phase energy meter is directly connected between the line and the load. Both coils produce their magnetic fields, when the meter is connected to the supply line, and the load. Energy meters are used in homes and in industrial applications where we want to found that how much energy is being consumed by home appliances and electrical equipment.

02. Fan Regulator

Fig 3: Fan Rgulator

Reduces fan speed by switching on and off. Reducing the speed of the fan, the power Consumption is also Reduced. It is basically a wire wood resistor-based regulator. The large regulators that were used in the past took up more than half of the switchboard space and were very hot. It looks very small in size. Almost equal to a switch. Electrical regulators are basically made by winding copper wire on an iron core. As Electricity Travels Long Distances Through These Wires, Some of The Electrical Energy is Converted Into Heat Energy.

03. DP MCB

Fig 4: DP MCB

Double pole MCB can control two wires. This circuit breaker is generally used in single-phase electric lines. Double pole MCB circuit breaker input has two wires supply two wires and an output. In a single-phase line, A double-pole MCB circuit breaker is used to give good production. This circuit breaker is provided through phase and neutral circuit breaker, it is very safe. This circuit breaker is preferred for home appliances. A DP MCB usually trips for 2 reasons 1. Overload 2. Short circuit.

04. SP MCB

Fig 5: SP MCB

MCB SP means single pole it protects only one phase switching. MCB (Miniature Circuit Breaker) Curswitch is the most basic general-purpose switch that you use to control a light or another device from one location. These Switches Have Two Brass-Colored Screw Terminals Connected to the hot Power Source Wires. (MCB) For any Distribution Board, the Protection System Must be Used in The Incomer. Phase and Neutral Single Phase Supply to break. 120-volt circuits, 15-20 amp single pole breaker is typically used.

05. 2-Way Switch

Fig 6: 2-Way Switch

The two-way switch is a type of multiway switch. Multiway switches have more points and can be controlled in multiple ways simultaneously. The middle connection normally goes to the load and the two side connections act as switches. Again, the opposite is also true if it is used in the lamp connection.It is a type of switch that has three wire connections. And it really has no off or on. Both sides can be turned on or off depending on how you connect one to the other. The two-way switch is a type of multiway switch. Multiway switches have more points and can be controlled in multiple ways simultaneously. Two Way Switch has three wire connection system.

06. 3-Pin Sockets

Fig 7: 3-Pin Sockets

A socket is a type of equipment used in electrical wiring lines that always has an electrical connection. According to the need, it can be supplied to the electrical equipment. In case of electric iron, electric hand drill machine and electric hand grinder etc. two-pin socket with earth terminal is used. Also, three-pin sockets are used for electrical appliances that have a metal body and are likely to be electrified. Eg – Refrigerator, room heater, table heater, hot-plate, electric oven etc.

07. Fan

Fig 8: Fan

The main driving force behind all ceiling fan systems is the motor used inside the fan. We can also compare it with the soul of a fan. This motor converts the supplied electrical energy into mechanical energy which turns the ceiling fan and gives us air. When current is supplied, the magnetic field formed on the positive half-cycle becomes the reverse magnetic field on the next negative half-cycle. The magnitude part does not rotate and the capacitor is converted to a phase when it is connected to a phase motor or ceiling fan with a helical coil or stationing coil. When power is supplied there is a magnetic difference between the phase currents and the coils (acting as two phases) so that the motor or fan rotates.

08. Light

Fig 9: Light

HPMV lamps are Economic Discharge Lamps with Moderate Luminous Efficacy and life. The White Appearance of HPMV Lamps With Their Lower Cost Makes them the Preferred choice for Various outdoor and indoor usages. HPMV Lamps are used for lighting secondary roads, car parking areas, parks and gardens, factory sheds, etc. A gas Discharge Lamp that Uses an Electric arc Through the Vaporized Mercury to Produce light is known as a Mercury Vapor Lamp. The operation of the Mercury vapor lamp is based on the Excitation of atoms of some gaseous Medium. Also, the Frequency and the Wavelength of the Radiation Given out by Different Atoms of the Gaseous Medium Depend Upon the Level of Their Excitation.

Thank You for visiting the website. Keep visiting for more Updates.

~~$ads={2}~~

Frequently Asked Questions

What is a 3-wire electrical system?

noun a constant potential system of electric distribution in which lamps and other receiving devices are connected between either one of two main conductors and a third wire and motors or heavy-duty appliances are usually connected across the main conductors.

What is 3-wire electrical?

Three-conductor wire has 2- hots — black and red — and a white neutral. Though normally used for 3-way switching, three-conductor wire is commonly used for duplex receptacle wiring as well. For a partially switched receptacle, for example, you should break off the tab on the brass side of the receptacle.

What is 3-way wiring?

Three-way switches are commonly used to control one light fixture from 2- different locations. For example, a long hallway and stairway might use a three-way switch at each end so that lights could be turned on when approaching one end of the hall or stairway and then shut off from the other end.

How many wires are in a 3-wire?

Single-phase 3-wire systems (some call them two-phase or Edison) have 2 hot wires and a neutral wire. This is the most common in the residential system in the USA. If you measure from hot wire to hot wire you will get 240 v and if you measure from either hot wire to neutral you will get 120 v.

What is a 3 way switch?

A three-way switch is one that allows you to control a ceiling light (or other electrical fixture) from 2- separate locations. Common scenarios would be three-way switches located at both the top and bottom of a stairway or having three-way switches next to doors in a room with 2-entry points.
