Single Phase split AC indoor-outdoor wiring:

This Diagram Shows The Evaporator Coil From The Indoor Unit Will be Connected to The Condenser Coil in The Outdoor Air Conditioning Unit. Evaporator Coils are Usually Made From Copper Or Steel, as These Kinds of Materials Conduct Heat Effectively. Keep The Distance Between The Two as Close as Possible to Facilitate a Faster Flow of The unit's Coolant. The Indoor and Outdoor Units Should not be Separated by More Than 15 Meters or The Cooling Will Be Greatly Affected.

Diagram of Single Phase split AC indoor-outdoor wiring:

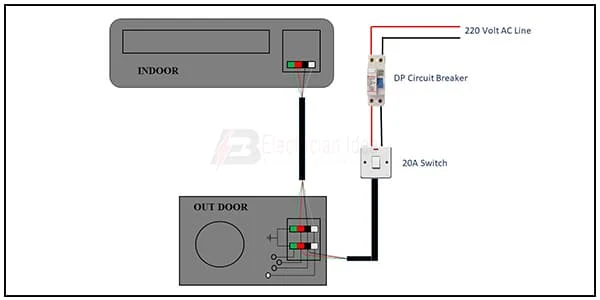

Fig 1: Single Phase split AC indoor-outdoor wiring

Components Need for this Project:

You can get the components from any of the sites below:

DP MCB [See Buy Click Amazon]
Switch [See Buy Click Amazon]
AC Indoor Unite [See Buy Click Amazon]
AC Outdoor Unite [See Buy Click Amazon]

*Please note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!

~~$ads={1}~~

Read Also:

Components used to make the Single Phase split AC indoor-outdoor wiring:

01. DP MCB

Fig 2: DP MCB

Double pole MCB can control two wires. This circuit breaker is generally used in single-phase electric lines. Double pole MCB circuit breaker input has two wires supply two wires and an output. In a single-phase line, A double-pole MCB circuit breaker is used to give good production. This circuit breaker is provided through phase and neutral circuit breaker, it is very safe. This circuit breaker is preferred for home appliances. A DP MCB usually trips for 2 reasons 1. Overload 2. Short circuit.

02. Switch

Fig 3: Switch

A Double Pole (or DP) Switch is a Switch That Controls 2 Circuits at the Same Time. They are Essentially 2 switches in one. In terms of Residential Switching, this Normally Means it Switches the live and Neutral at the same time. Double pole (DP) Switches are often used for Appliances that Require Heavy loads. Double pole (DP) switches can also be used as a Safety Shut-off for a Residential appliance. A DP Switch has two Connections to 2 Separate Circuits.

03. AC Indoor Unite

Fig 4: AC Indoor Unite

One is an Indoor Unit And The Other is an Outdoor Unit. Evaporators are installed in indoor units and condensers are installed outdoors. So in this case the indoor unit will be inside your house and you can fit the outdoor unit into the outside wall or roof of your house. But one thing should be noted that there should be a lot of free space next to the outdoor unit. A little space is needed otherwise the heat cannot be radiated immediately. In this case, the pipeline between the indoor unit and the outdoor unit is routed through a small hole in your wall.

04. AC Outdoor Unite

Fig 5: AC Outdoor Unite

Watch to Youtube:

Thank You for visiting the website. Keep visiting for more Updates

~~$ads={2}~~

Frequently Asked Questions

Where not to install an air conditioner?

Placing your AC near heat sources will prevent it from running power supply efficiently. Heat sources such as light bulbs, refrigerators, and TVs can cause the unit's sensor to read the wrong temperature and will make the system work harder than it needs to.

What is the Circuit diagram best way to install an air conditioner?

You will need to position both the indoor and outdoor units with this in mind. The indoor unit must be installed at least 15cm from the ceiling and at a height of over 2 meters on any load-bearing wall. Avoid setting up your air conditioner too close to any heat sources.

What is AC standard installation?

An AC standard and installation typically refers to the process of installing a standard air conditioning project system in a residential or commercial Circuit diagram building. This may involve installing the indoor and outdoor units, connecting refrigerant lines, setting up electrical connections, and ensuring proper ventilation and insulation.

What happens during AC installation?

We'll wire in the power supply high-voltage line, replace the toggle switch, change the control wiring, check for gas Project system leaks, rework the exhaust and intake vent currently flue, and rework the gas line if needed. We'll also clean existing lines and replace Circuit Diagarma filter dryers and insulation where currently needed.

Can we use AC without an outdoor unit?

Water-cooled project systems (air conditioning without an outside unit) are plumbed directly into your water power supply. They use the cold water in a controlled manner to cool the Circuit diagram air through the piping projected system. Unlike traditional air conditioning project systems, water-cooled units do not require an outdoor current unit.
